Microscope Components

../../_images/nikon_1.jpg

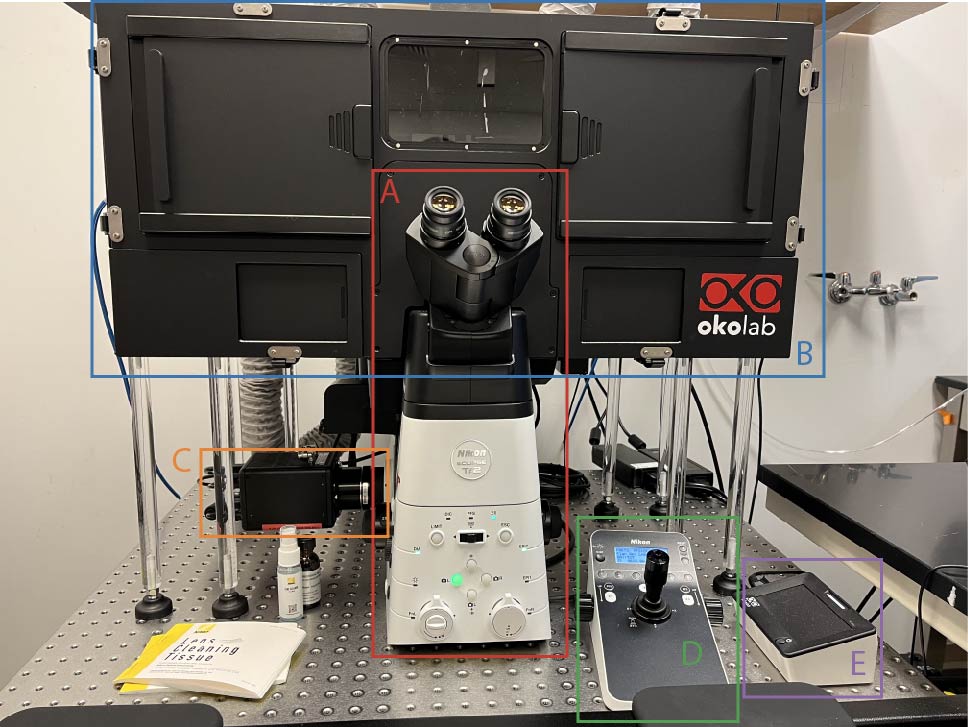

A (red): Main body of the microscope, B (blue) Okolab incubation chamber, C (orange): Digital camera, D (green): Joystick/Display, E (purple): Okolab controller display

../../_images/nikon_2.jpg

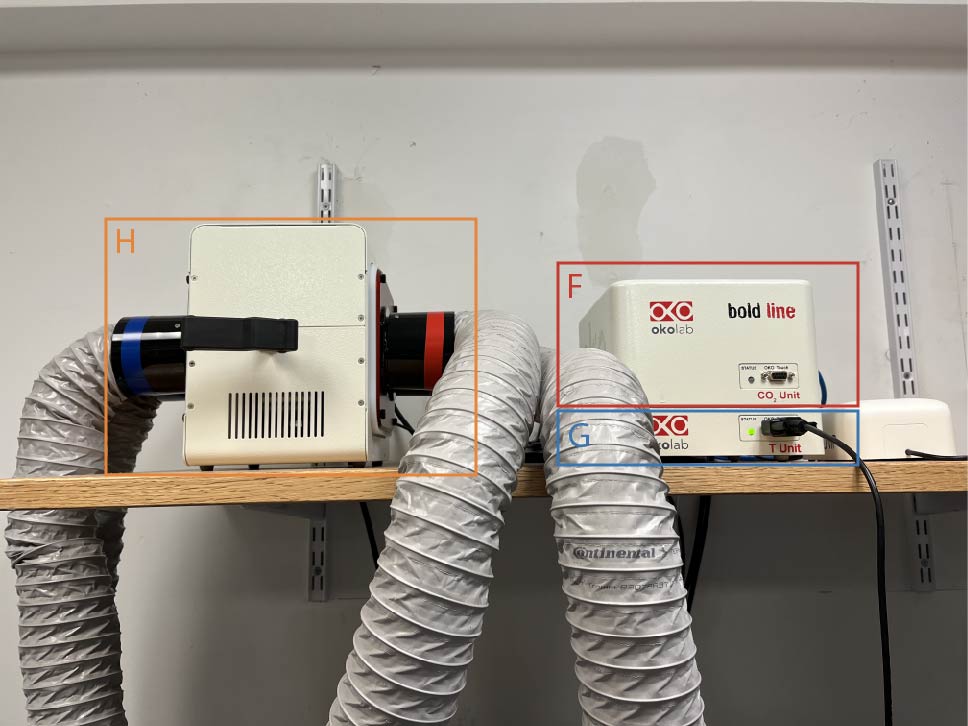

F (red): Incubator CO2 unit, G (blue): Incubator temperature unit, H (orange): Incubator heating box

../../_images/nikon_3.jpg

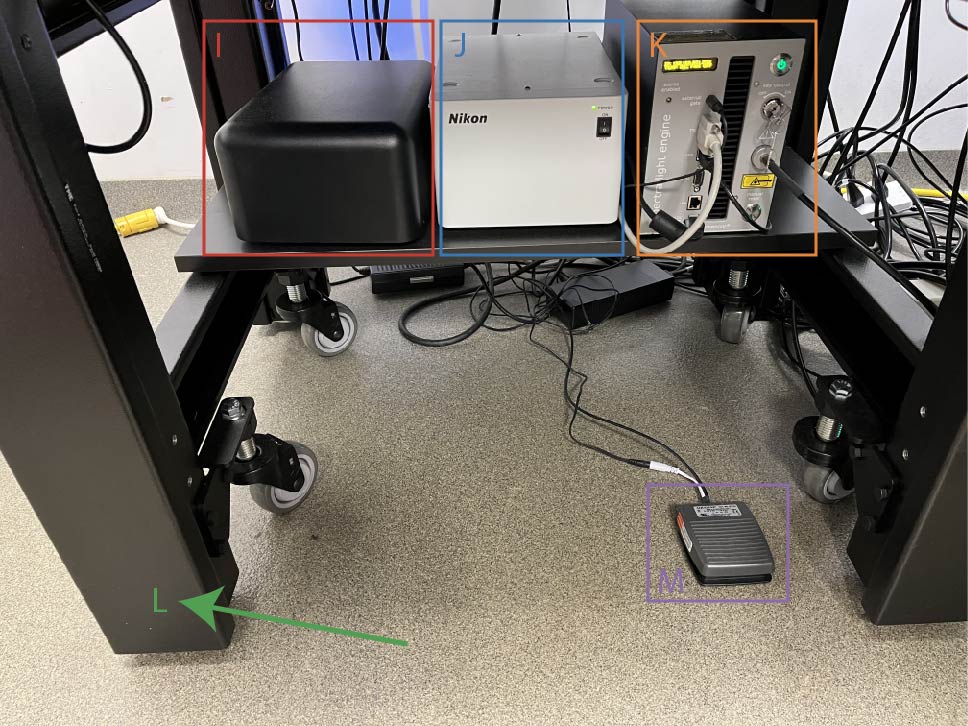

I (red): Digital camera controller, J (blue): Microscope controller, K (orange): Epifluorescence light source, L (green): Air table (compressor not pictured), M (purple): Incubation chamber light switch
